Six-sides CNC drilling center high speed

分类：

Six-sides CNC drilling center

Model: DM-S6

  1. Main technical parameters



Model S6 CNC drilling center
Board length 250-2800mm System Taiwan SYNTEC
Board width 50-1200mm Weight 4000kg
Board thickness 15-30mm RPM 4500rpm


Top speed

(X/U/Y/Z)



75/75/75/25m/min

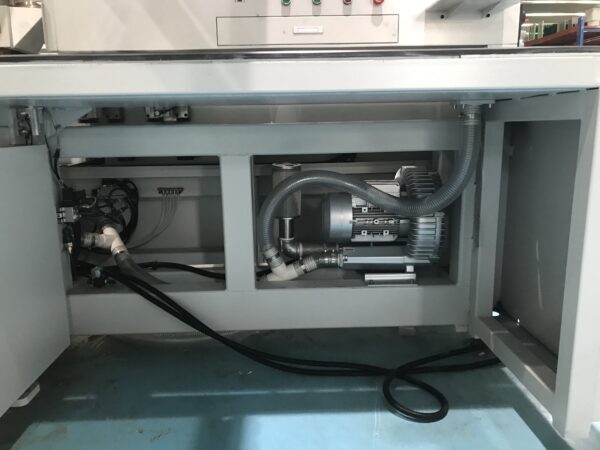

Suction port

 Upper suction port φ120mm Lower suction port φ120mm
Upper spindle power 6kw Lower spindle power

3.5KW
Maximum speed 18000rpm Max rpm 18000rpm
vertical drill 12 Lower drill 9

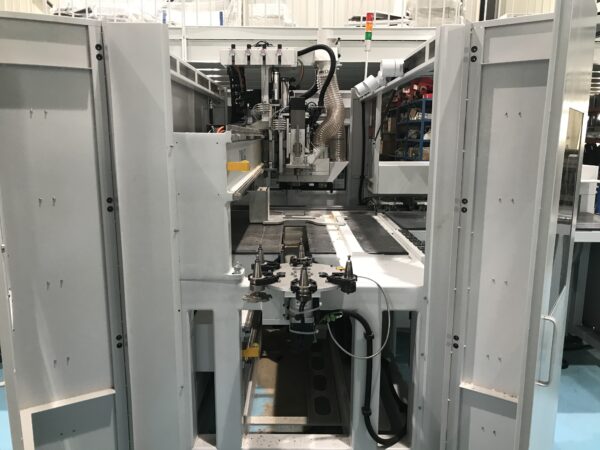

Tool magazine Automatic disc tool changer ATC 5pcs
total power 24KW Machine size 4300×2910×2100mm
